Your sleeping space
A full queen sleeping setup, with access around the foot of the bed.
ALPINE 18.6 SERIES
More freedom.
Built in.
ELEVATE electric pop-top. EXPLOR hard-top.
Dual axle touring.
A narrower 2.16m hybrid footprint.
EXCEPTIONALLY EQUIPPED. AS STANDARD.
ELEVATE & EXPLORStart with more.
Choose your roofline. Choose your layout.
The serious touring equipment is already included.
900Ah900Ah Lithium Batteries1250W1250W Solar + External Input5000WVictron Multi-Plus II 120A / 5000W Inverter/Charger240L240L Fresh Water Tanks
ALSO INCLUDED AS STANDARDExplore the details ↘
ENGINEERED FOR THE JOURNEY
THE STANDARD EQUIPMENT, EXPLAINED
Construction & towingINCLUDED ON BOTH MODELS
Confidence.
From the ground up.
Advanced PVC composite construction. Auto-levelling ATX suspension. Hydraulic disk brakes. The foundation is part of the standard specification.
- Advanced PVC composite body and structural floor
- Insulated lightweight panel construction
- Hot-dipped galvanised Q345 steel chassis
- Cruisemaster ATX auto-levelling airbag suspension
- Cruisemaster hydraulic disk brakes
- DO35 off-road coupling
01Construction & towingCollapse −
Confidence.
From the ground up.
Advanced PVC composite construction. Auto-levelling ATX suspension. Hydraulic disk brakes. The foundation is part of the standard specification.
- Advanced PVC composite body and structural floor
- Insulated lightweight panel construction
- Hot-dipped galvanised Q345 steel chassis
- Cruisemaster ATX auto-levelling airbag suspension
- Cruisemaster hydraulic disk brakes
- DO35 off-road coupling
02Off-grid powerCollapse −
Stay powered.
Stay a little longer.
900Ah lithium, 1250W solar and a Victron 120A / 5000W inverter/charger. A substantial touring power system, included from the start.
- 900Ah lithium batteries
- 1250W roof-mounted solar
- External solar input for portable panels
- Victron Multi-Plus II 120A / 5000W inverter/charger
- Garmin monitoring and switching
- 12V and 240V power points throughout
03Kitchen & storageCollapse −
The kitchen.
Without the walls.
Open the signature swing kitchen. Unfold your day around induction cooking, pantry storage and a hot/cold sink, with an electric awning overhead.
- Stainless steel swing kitchen
- Dual induction cooktop
- Hot/cold external sink and large pantry
- Electric awning with anti-flap kit
- Powered fridge slide; external fridge is an upgrade
- BBQ slide, generator slide and firewood rack
- Weather-sealed external storage
04Heating & comfortCollapse −
Your own space.
Whatever the season.
Diesel hydronic cabin heating and hot water, roof-mounted air conditioning and 12V fans. The essentials for feeling at home are already on board.
- Diesel hydronic cabin-heating & hot water combo
- Roof-mounted air conditioning
- 12V fans throughout
- Midge screens and blackout blinds
- Cabin pressure DRS system for dust reduction
- EXPLOR: standard 3-in-1 convection oven / microwave / air-fryer
05Water & ensuiteCollapse −
A proper ensuite.
More independence.
A full rear ensuite separates the shower from the waterless heat-seal toilet. Fresh and grey water storage, mains connection and an external shower support different ways of travelling.
- 240L fresh water tanks
- 100L grey water tank
- Waterless heat-seal toilet
- Separate shower
- Diesel hydronic hot water
- Mains water connection
- External hot/cold shower
06Monitor & controlCollapse −
See what’s happening.
Stay in control.
The Garmin Monitor & Control Centre brings monitoring and switching together, so checking your touring systems is part of everyday life on board.
- Garmin Monitor & Control Centre
- System monitoring and switching
- App connectivity
- Dimmable LED cabin lighting
- White/orange external LED lighting
OFF-GRID CALCULATOR
How long could
you stay?
Explore how battery capacity, solar conditions and everyday power use affect your time off-grid. Use the ALPINE calculator to try your touring setup.
Planning estimates based on your inputs and usage assumptions.ONE PLATFORM. TWO PERSPECTIVES.
18.6 SERIESFind your kind of freedom.
18.6 ELEVATE
Electric pop-top flexibility. A lower travel profile, with room to open up when you arrive.
2.56mStorage height
2.16mTravel width
8.3mOverall length
Dual axleHybrid platform
01 / 02

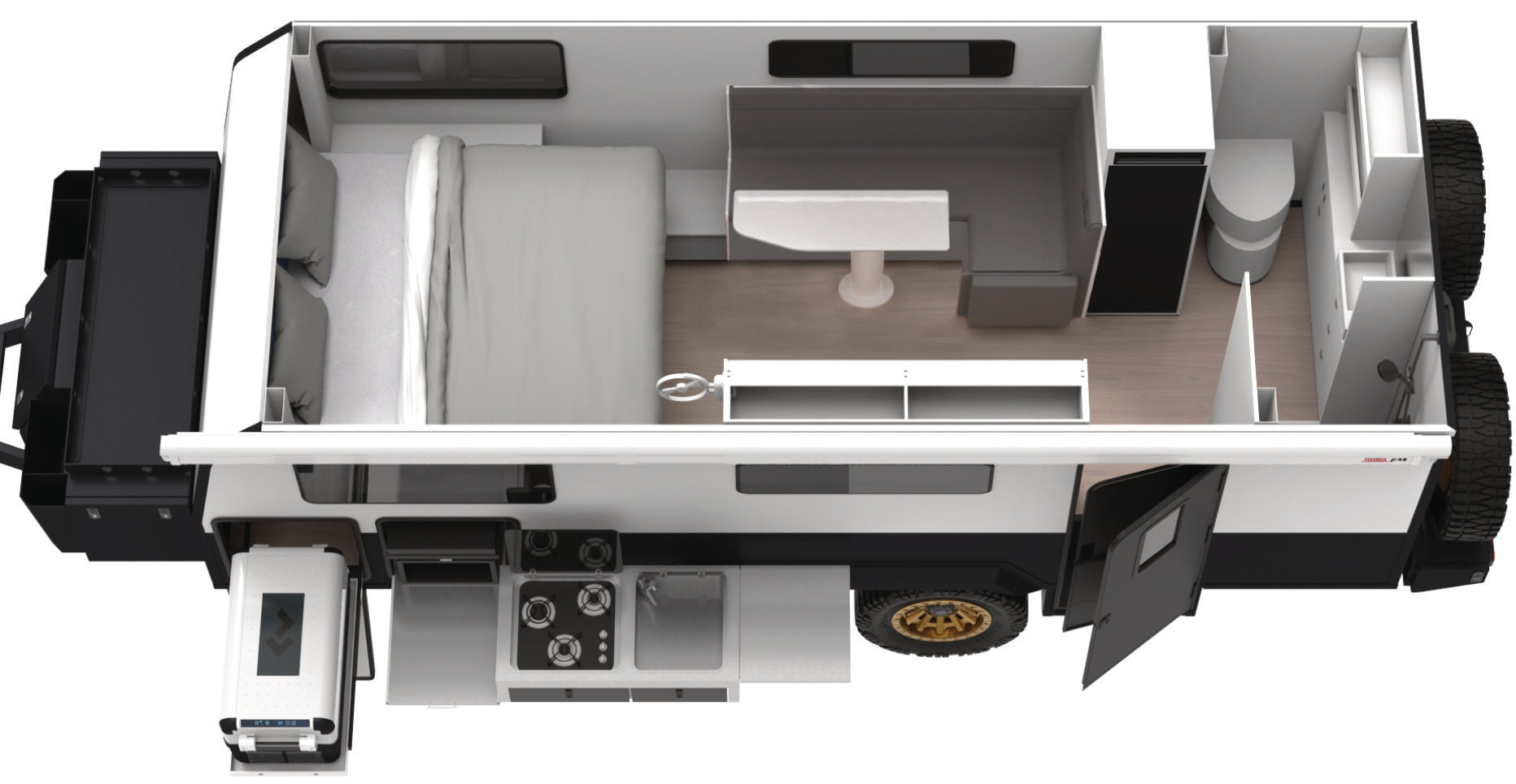

Example floorplan. Bed and lounge configurations are selected in the Quote Builder.
Make room for your way of travelling. Compare the layout illustrations below, then finalise your choices in the Quote Builder.

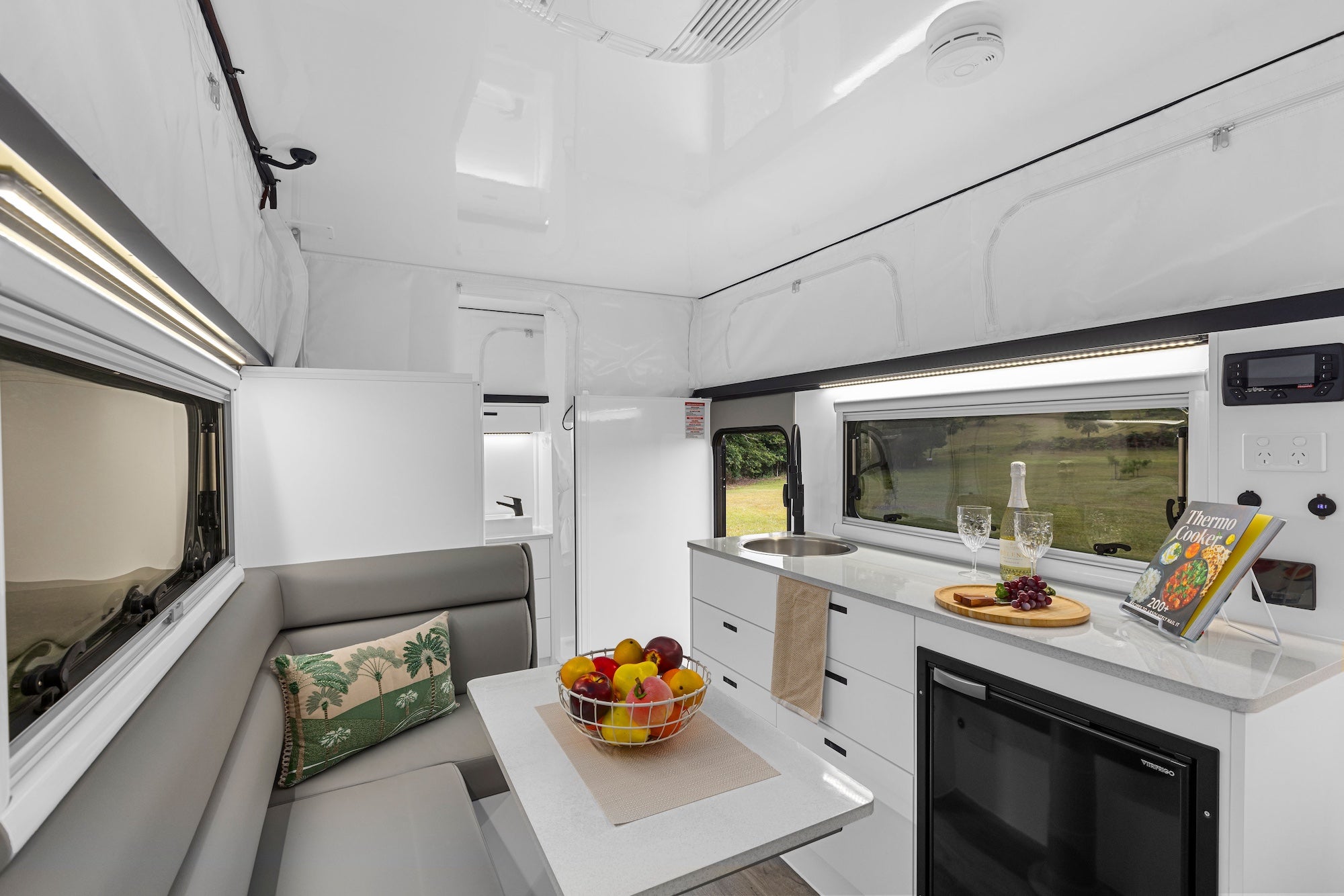

Your place to unwind
Opposing seats with a central table for meals, work or relaxing inside.
UpholsteryGrey · Mocha · Black
Internal fridge200L fridge/freezer or under-bench fridge with cupboard
Rear carrier1 spare + 2 jerry holders, or 2 spare wheels
Images may show optional equipment. Layout illustrations are indicative. Final configuration and pricing are available in the Quote Builder.
OPEN UP YOUR EVERYDAY
Life happens
out here.
The signature swing kitchen. Dual induction cooking. A proper pantry and hot/cold sink. An electric awning overhead.
Explore the outdoor inclusions ↗NOTHING LEFT TO GUESS
The complete
specification.
Everything included, laid out in full. Collapse any category when you’re ready to move on.
Construction Collapse
- Advanced PVC composite body construction
- Structural PVC composite floor system
- Insulated lightweight panel construction
- Hot-dipped galvanised chassis (150 x 50mm x 4mm)
- Q345 structural steel
- Designed for Australian touring conditions
Suspension, Wheels & Towing Collapse
- Dual axle configuration
- Cruisemaster ATX auto-leveling airbag suspension
- Cruisemaster hydraulic disk brakes
- 16" 6-stud off-road alloys with 265/75/16 all-terrain tyres
- DO35 off-road coupling hitch
- 750kg ARK jockey wheel and stabiliser legs
- Wireless reverse camera and in-car monitor
- Under-body rubber stone protection
- Rear spare wheel carrier with integrated pole carrier — choose 1 spare wheel with two jerry holders, or 2 spare wheels
Internal Living Collapse
- Choose a full queen bed or single beds with small aisle
- Upholstered bedhead lighting, wireless device charging nooks and 12V outlets
- Choose café or L-Shape lounge/dining layout options
- Both lounge layouts convert to a small bed or day-bed
- Walk-around foot of the bed on both models
- Grey, Mocha or Black upholstery selection
- Internal kitchenette with sink
- EXPLOR hard-top includes standard 3-in-1 convection oven/ microwave / air-fryer.
- Hot and cold water
- Full rear ensuite with separate shower and waterless toilet
- Heat-seal waterless sealing toilet system - odourless, hygienic (3J-WPT)
- Roof-mounted air conditioning
- Diesel hydronic air heater and hot water system
- Cabin pressure DRS system for dust reduction
- Dimmable LED lighting
- Midge screens and blackout blinds on windows and door, plus door security screen
- 12V and 240V power points throughout
- Internal fridge: Choose 200L fridge/freezer or under-bench fridge with cupboard storage
External Living Collapse
- ALPINE's signature external kitchen setup
- Stainless steel kitchen construction
- Large pantry storage
- Cooking area with dual induction cooktop
- Hot and cold external sink
- Fridge slide with 12V power — fridge upgrade available
- BBQ slide and BBQ utensil storage
- Large external storage compartments with weather seals
- Electric awning with anti-flap kit
- External hot/cold shower
- External LED lighting with white/orange settings
- Drawbar tap
- Front storage box with BBQ slide and storage, generator slide, gas bottle storage, lockable jerry holders and firewood rack
Off-Grid Systems Collapse
- 900Ah lithium battery system
- 1250W roof-mounted solar
- External solar input for portable panels
- Victron Multi-Plus II 120A / 5000W Inverter / Charger
- Garmin monitoring and switching
- Victron 5000W inverter
- 100W 12V outlet (for Starlink)
- 240L fresh water storage
- 100L grey water tank
- Mains water connection
- Waterless heat-seal toilet system (3J-WPT)
Dimensions Collapse
18.6 ELEVATE
- External Length
- 8.3m
- Body Length
- 5.64m
- Body Width
- 2.0m
- Travel Width
- 2.16m (incl Awning & Guards)
- Storage Height
- 2.56m
- Tare
- 2,850kg
- ATM
- 3,500kg
- Payload
- 650kg
- Tow Ball
- 230kg
18.6 EXPLOR
- External Length
- 8.3m
- Body Length
- 5.64m
- Body Width
- 2.0m
- Travel Width
- 2.16m (incl Awning & Guards)
- Storage Height
- 3.11m
- Tare
- 2,850kg
- ATM
- 3,500kg
- Payload
- 650kg
- Tow Ball
- 230kg
Support & Ownership Collapse
- Direct-to-brand support
- Warranty support coordinated by the ALPINE team
- Australia-wide servicing pathways
- Sunshine Coast service and warranty support team
- Built on 25 years of camper and caravan industry experience
Specifications supplied by ALPINE. Dimensions and weights are indicative and vary with configuration; confirm final equipment and plated weights for your ordered vehicle. The powered external fridge slide is included; the external fridge is an upgrade.
