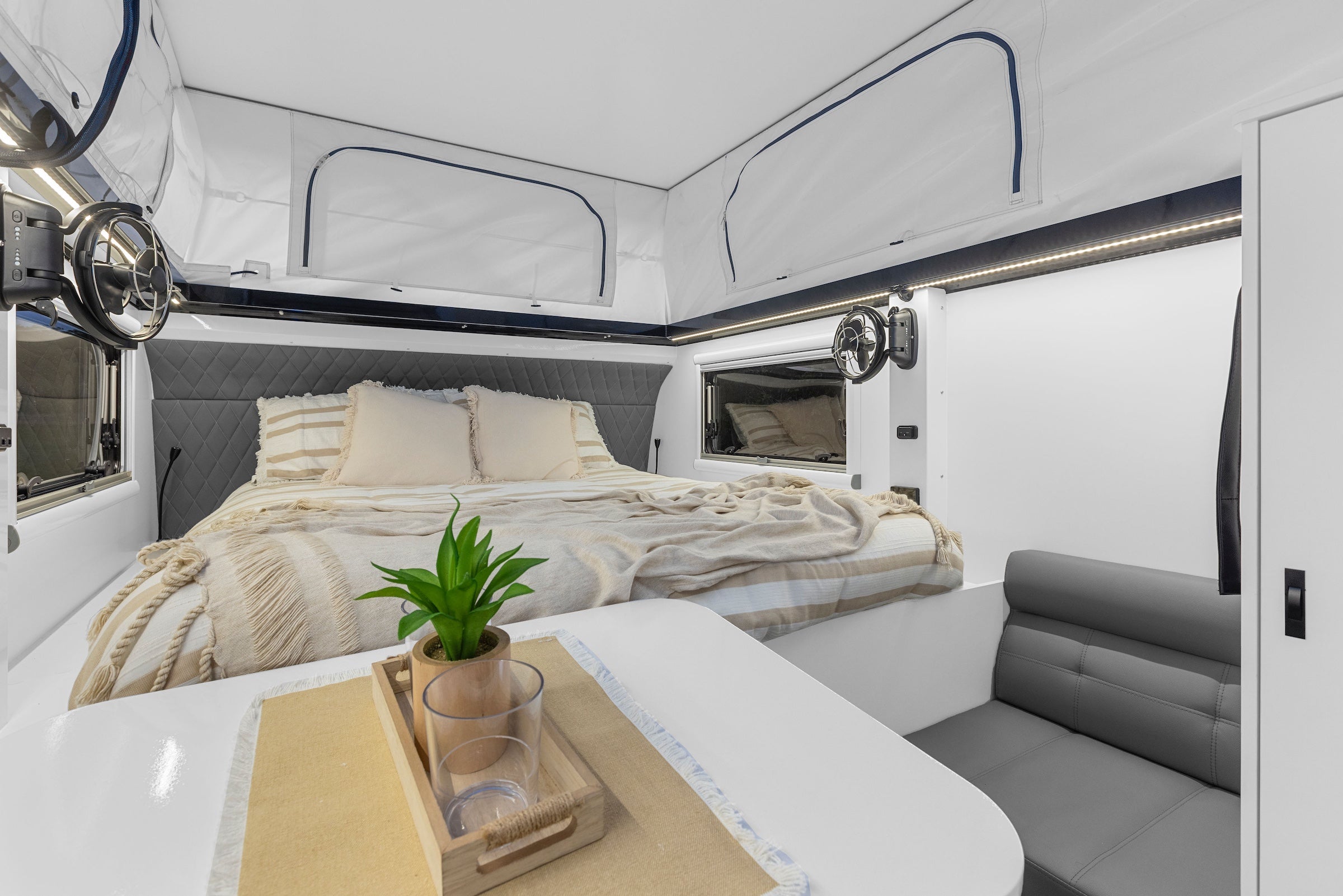

Your sleeping space
A full queen sleeping setup with bedhead lighting and wireless charging nooks.
ALPINE-14 & 15 SERIES
More freedom.
Built in.

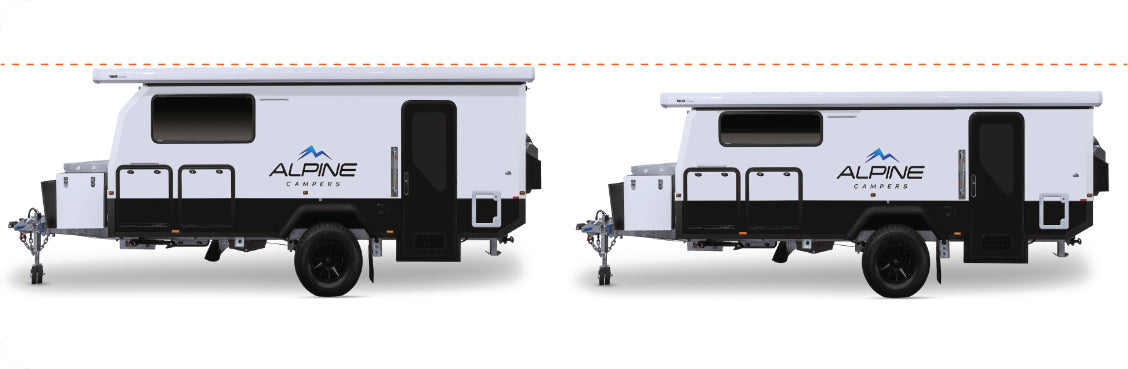

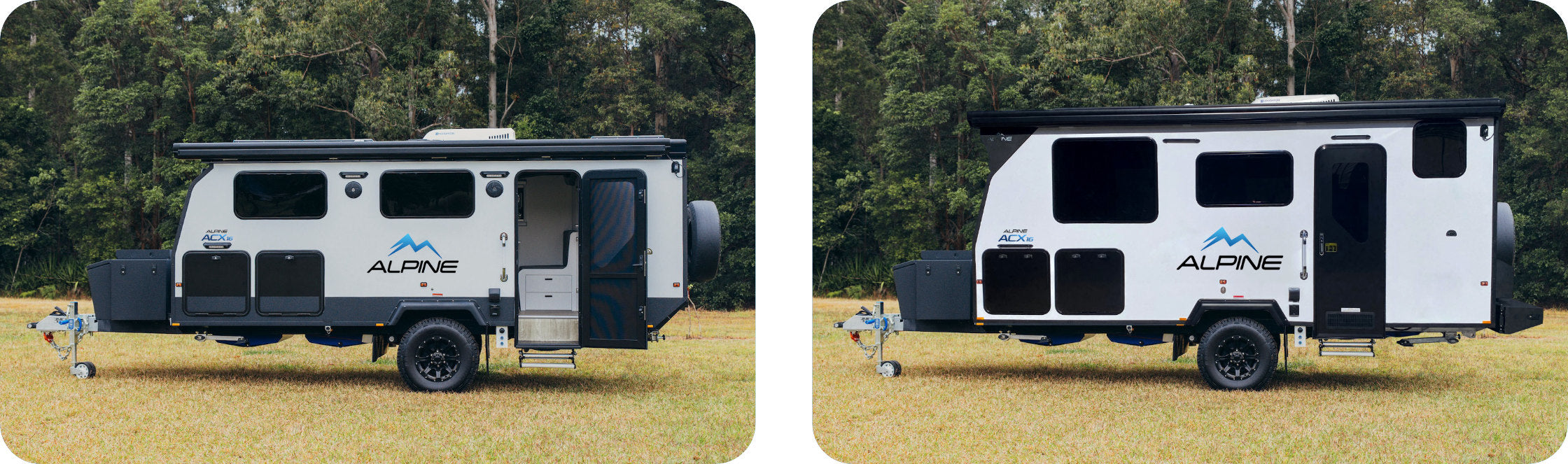

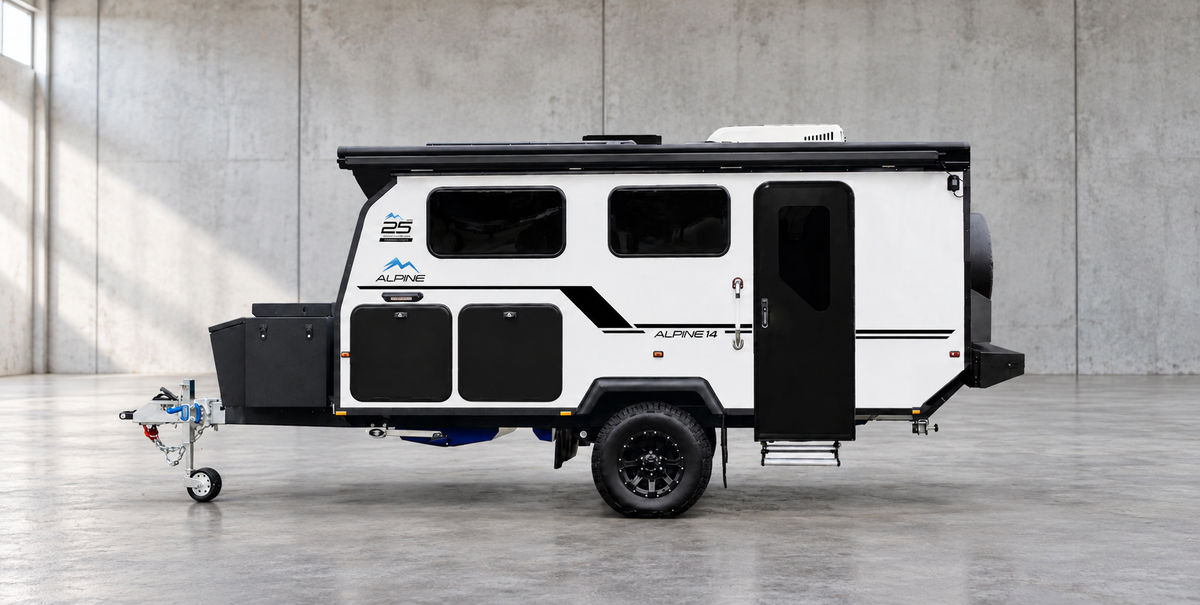

Two compact models. Single axle. Electric pop-top.
Compact touring. Generously equipped.
A 2.16m travel width.
EXCEPTIONALLY EQUIPPED. AS STANDARD.
ALPINE-14 & ALPINE-15Start with more.
Choose your size. Choose your sleeping layout.
The serious touring equipment is already included.
600Ah600Ah Lithium Batteries750W750W Solar + External Input3000WVictron Multi-Plus II 120A / 3000W Inverter/Charger240L240L Fresh Water Tanks
ALSO INCLUDED AS STANDARDExplore the details ↘
ENGINEERED FOR THE JOURNEY
THE STANDARD EQUIPMENT, EXPLAINED
Construction & towingEQUIPMENT & CONFIGURATION DETAILS
Confidence.
From the ground up.

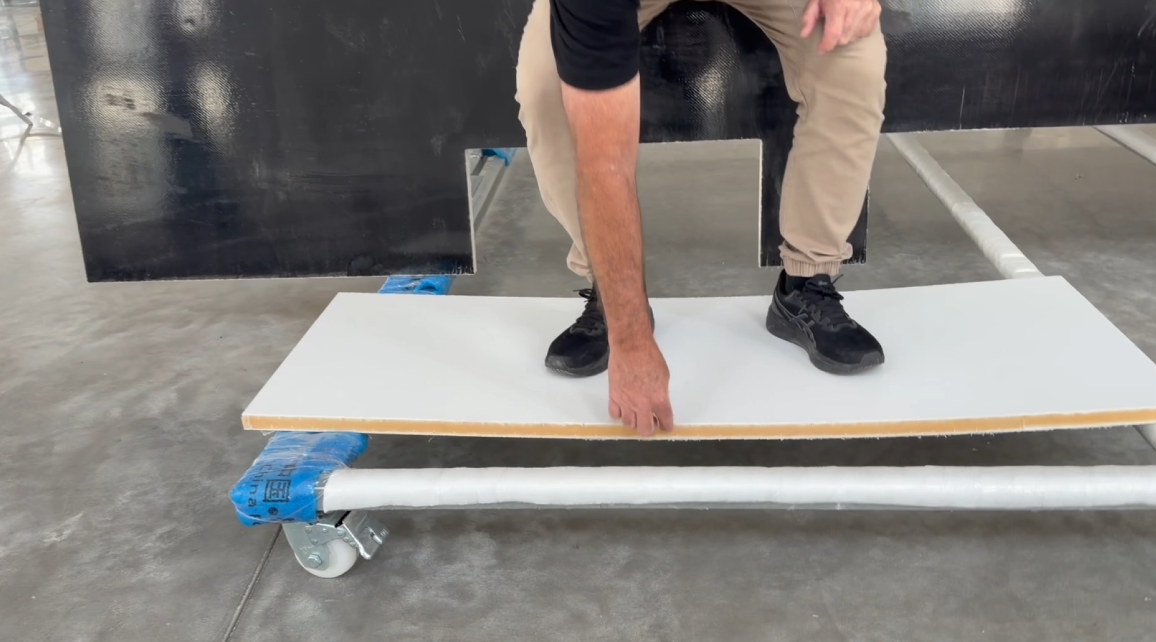

Advanced PVC composite construction, a galvanised Q345 steel chassis and single axle Cruisemaster ATX airbag suspension. Hydraulic disk brakes and a DO35 coupling are included on both models.
- Advanced PVC composite body and structural floor
- Insulated lightweight panel construction
- Hot-dipped galvanised Q345 steel chassis
- Single axle Cruisemaster ATX airbag suspension
- Cruisemaster hydraulic disk brakes
- DO35 off-road coupling
01Construction & towingCollapse −
Confidence.
From the ground up.
Advanced PVC composite construction, a galvanised Q345 steel chassis and single axle Cruisemaster ATX airbag suspension. Hydraulic disk brakes and a DO35 coupling are included on both models.
- Advanced PVC composite body and structural floor
- Insulated lightweight panel construction
- Hot-dipped galvanised Q345 steel chassis
- Single axle Cruisemaster ATX airbag suspension
- Cruisemaster hydraulic disk brakes
- DO35 off-road coupling
02Off-grid powerCollapse −
Stay powered.
Stay a little longer.
600Ah lithium, 750W roof solar and a Victron Multi-Plus II 120A / 3000W inverter/charger. External solar input and Garmin monitoring complete the standard touring setup.
- 600Ah lithium batteries

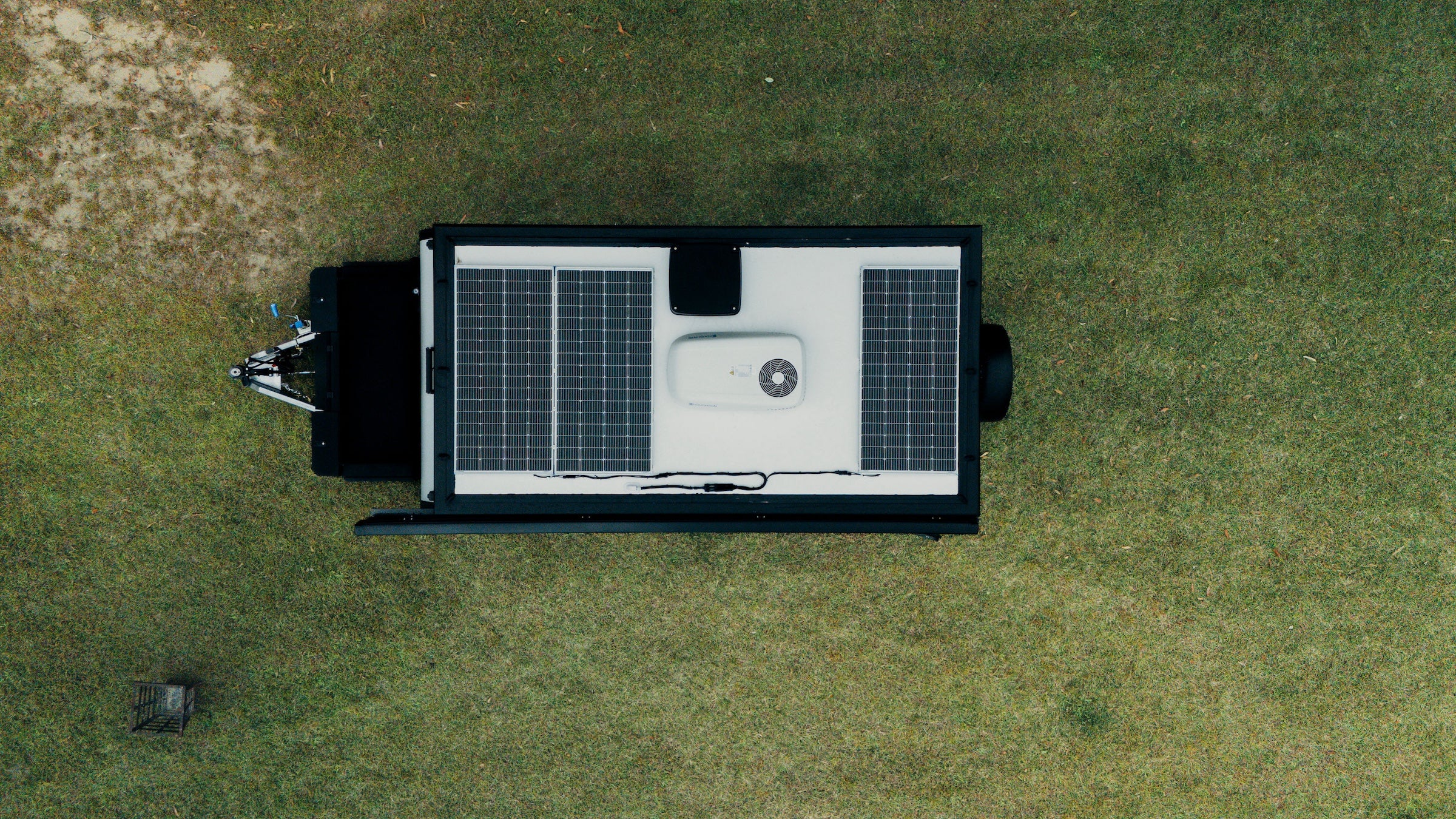

- 750W roof-mounted solar
- External solar input for portable panels
- Victron Multi-Plus II 120A / 3000W inverter/charger
- Garmin monitoring and switching
- 12V and 240V power points throughout
03Kitchen & storageCollapse −
The kitchen.
Without the walls.

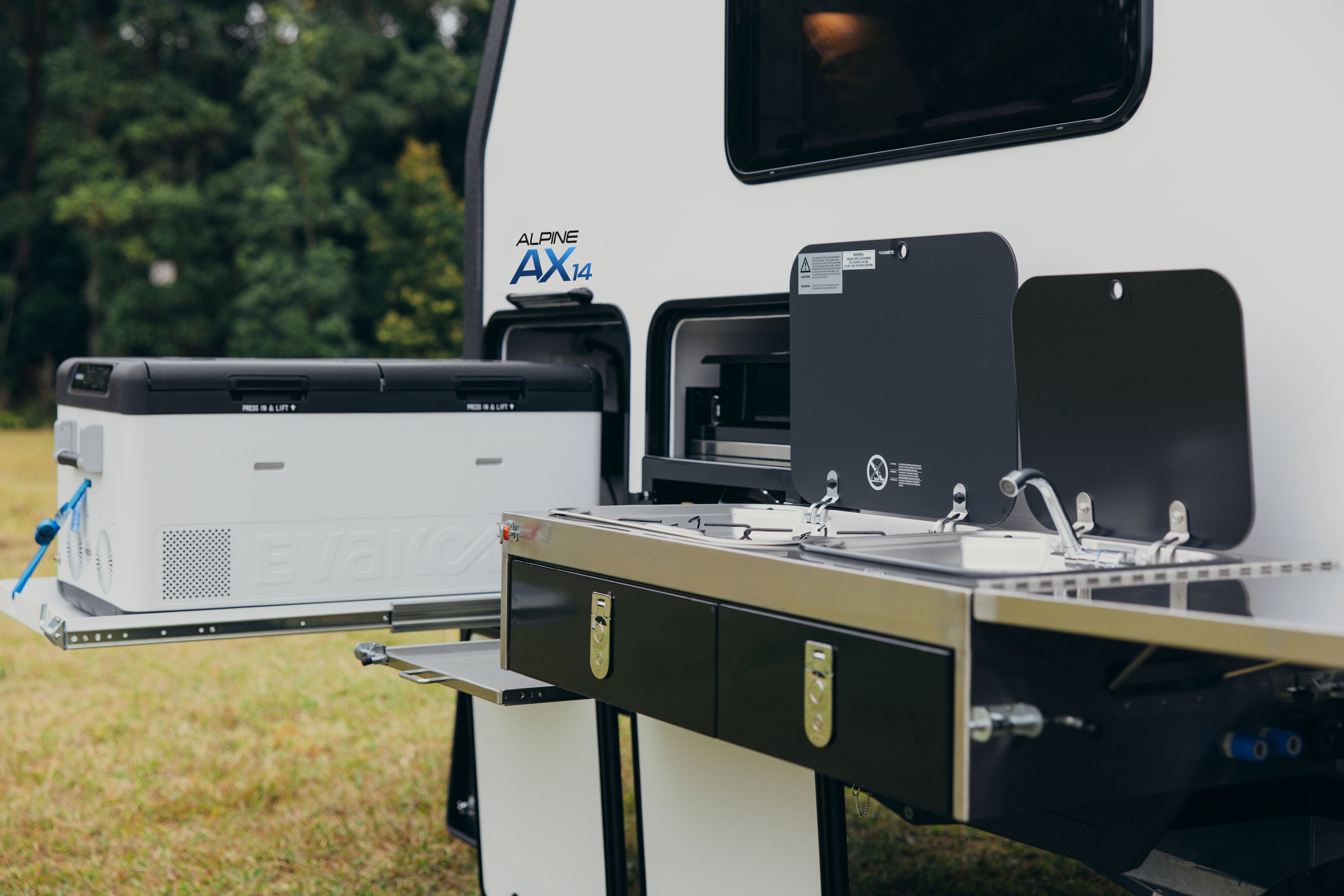

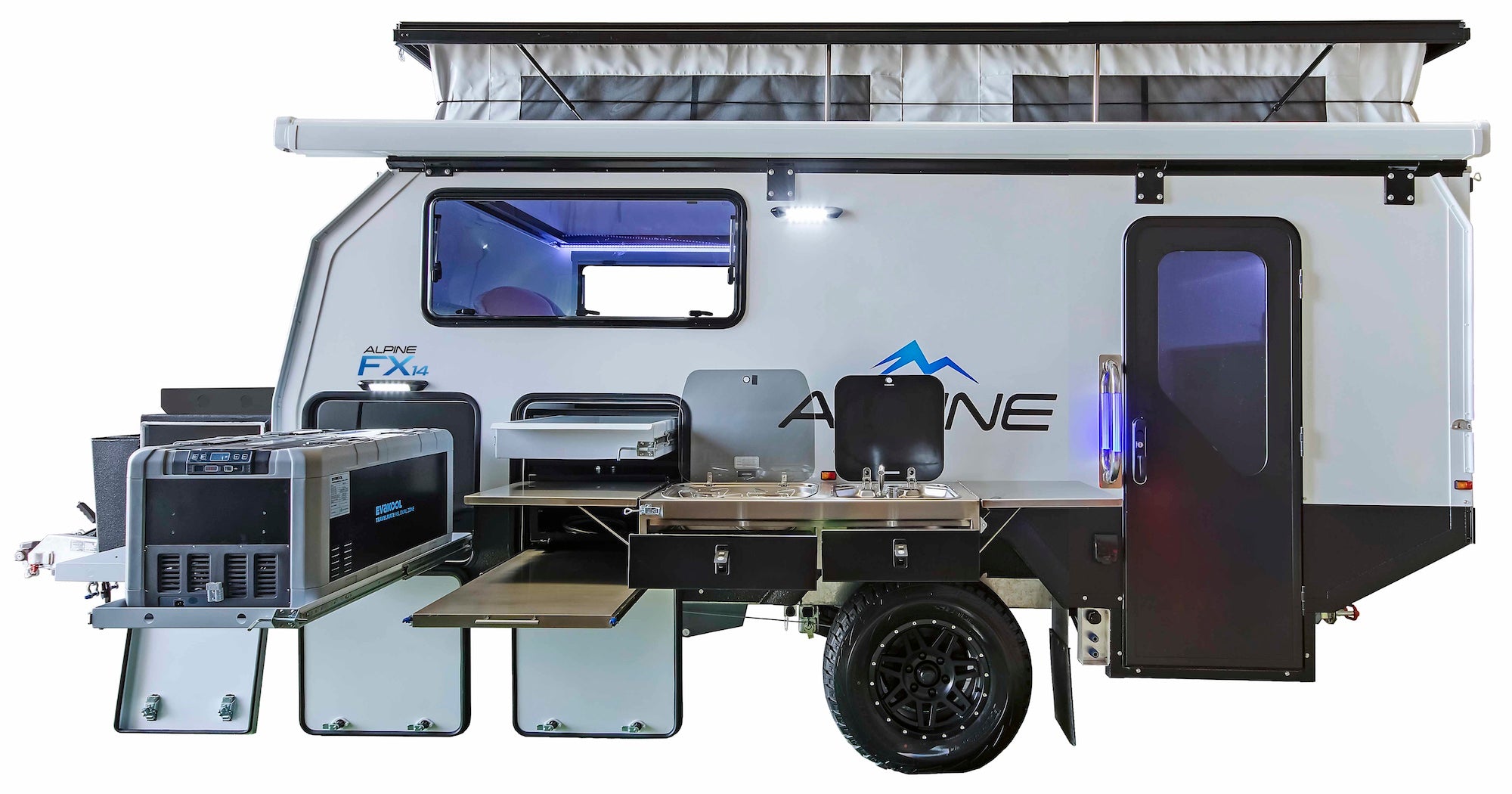

Open the signature swing kitchen. Unfold your day around induction cooking, pantry storage and a hot/cold sink, with an electric awning overhead.
- Stainless steel swing kitchen
- Dual induction cooktop
- Hot/cold external sink and large pantry

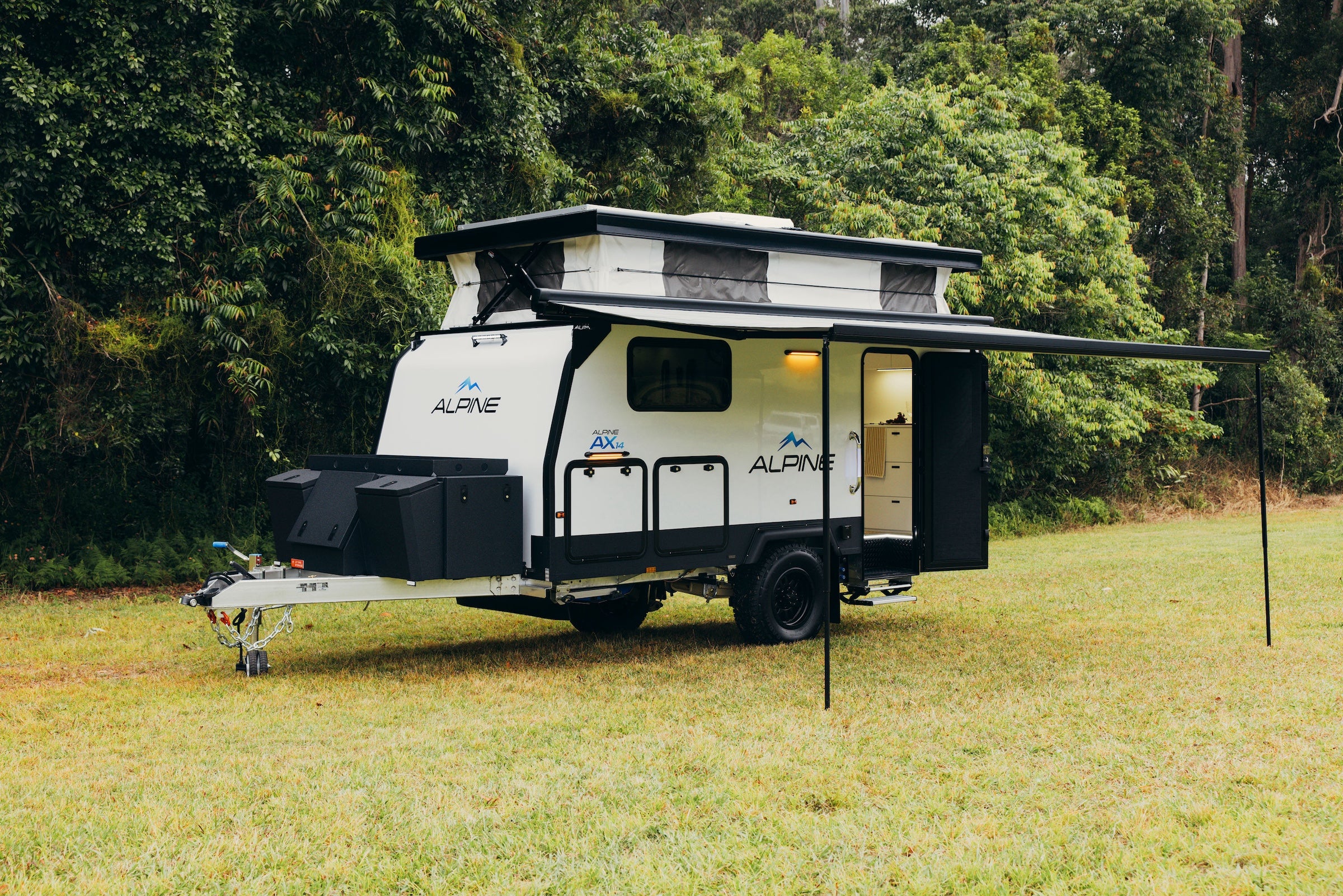

- Electric awning with anti-flap kit
- Powered fridge slide; external fridge is an upgrade
- BBQ slide, generator slide and firewood rack
- Weather-sealed external storage
04Heating & comfortCollapse −
Your own space.
Whatever the season.
Diesel hydronic cabin heating and hot water, roof-mounted air conditioning and an electric pop-top. Choose queen or single beds, with across-aisle lounge/dining seating.
- Diesel hydronic air heater and hot water system
- Roof-mounted air conditioning
- Queen or single beds with centre aisle
- Across-aisle lounge/dining layout
- ALPINE-15: 300mm longer lounge/dining seating
- Midge screens, blackout blinds and DRS dust reduction
05Water & ensuiteCollapse −
A proper ensuite.
More independence.
The compact combo ensuite combines a shower and waterless heat-seal toilet. 240L fresh water, 100L grey water, mains connection and an external hot/cold shower support everyday touring.
- 240L fresh water storage
- 100L grey water tank
- Combo ensuite with shower and waterless toilet
- Heat-seal waterless toilet system (3J-WPT)
- Diesel hydronic hot water
- Mains water connection
- External hot/cold shower
06Monitor & controlCollapse −
See what’s happening.
Stay in control.
The Garmin Monitor & Control Centre brings monitoring and switching together, so checking your touring systems is part of everyday life on board.
- Garmin Monitor & Control Centre
- System monitoring and switching
- Dimmable LED cabin lighting
- White/orange external LED lighting
OFF-GRID CALCULATOR
How long could
you stay?
Explore how battery capacity, solar conditions and everyday power use affect your time off-grid. Use the ALPINE calculator to try your touring setup.
Planning estimates based on your inputs and usage assumptions.TWO MODELS. YOUR KIND OF FREEDOM.
14 & 15 SERIESFind your kind of freedom.

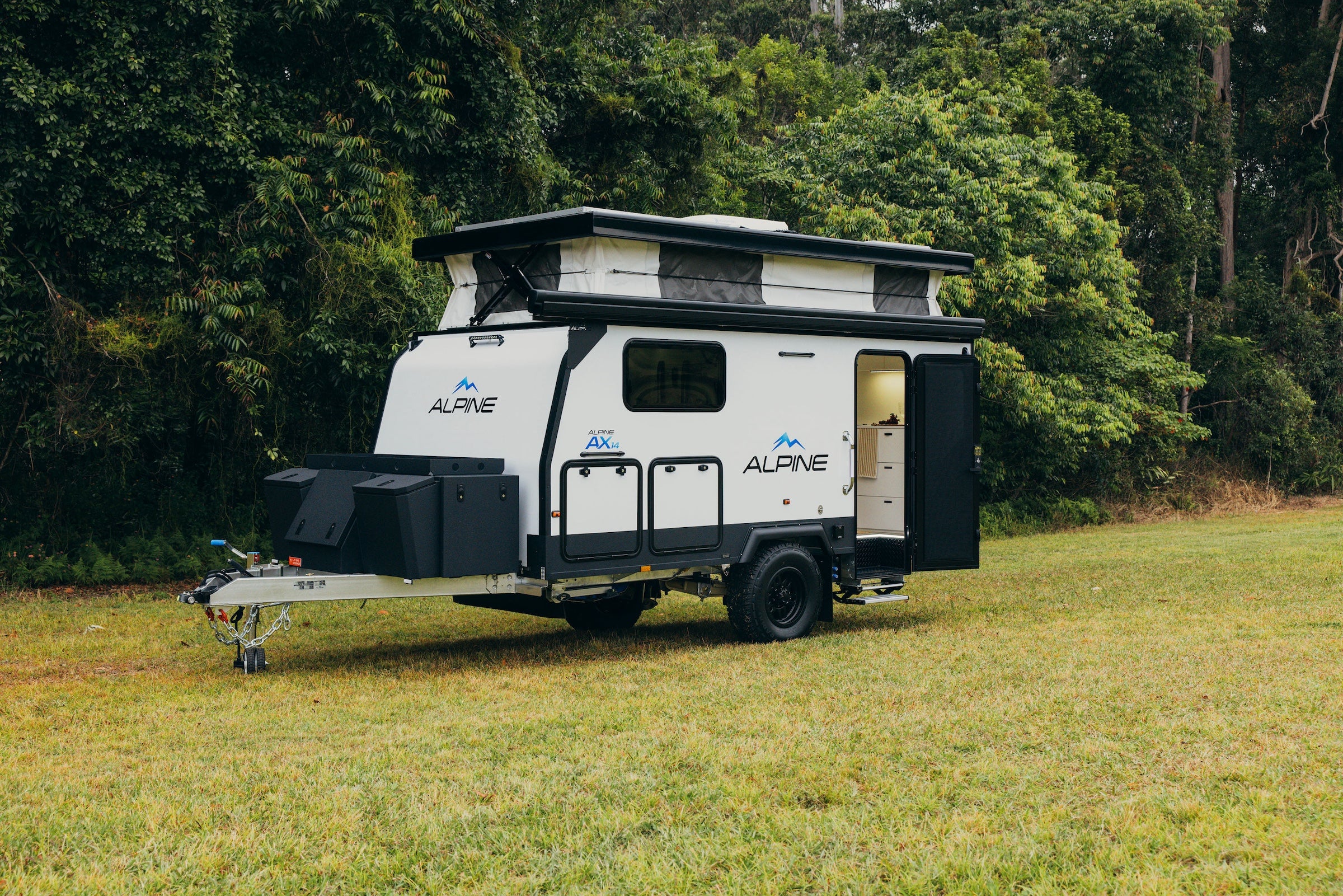

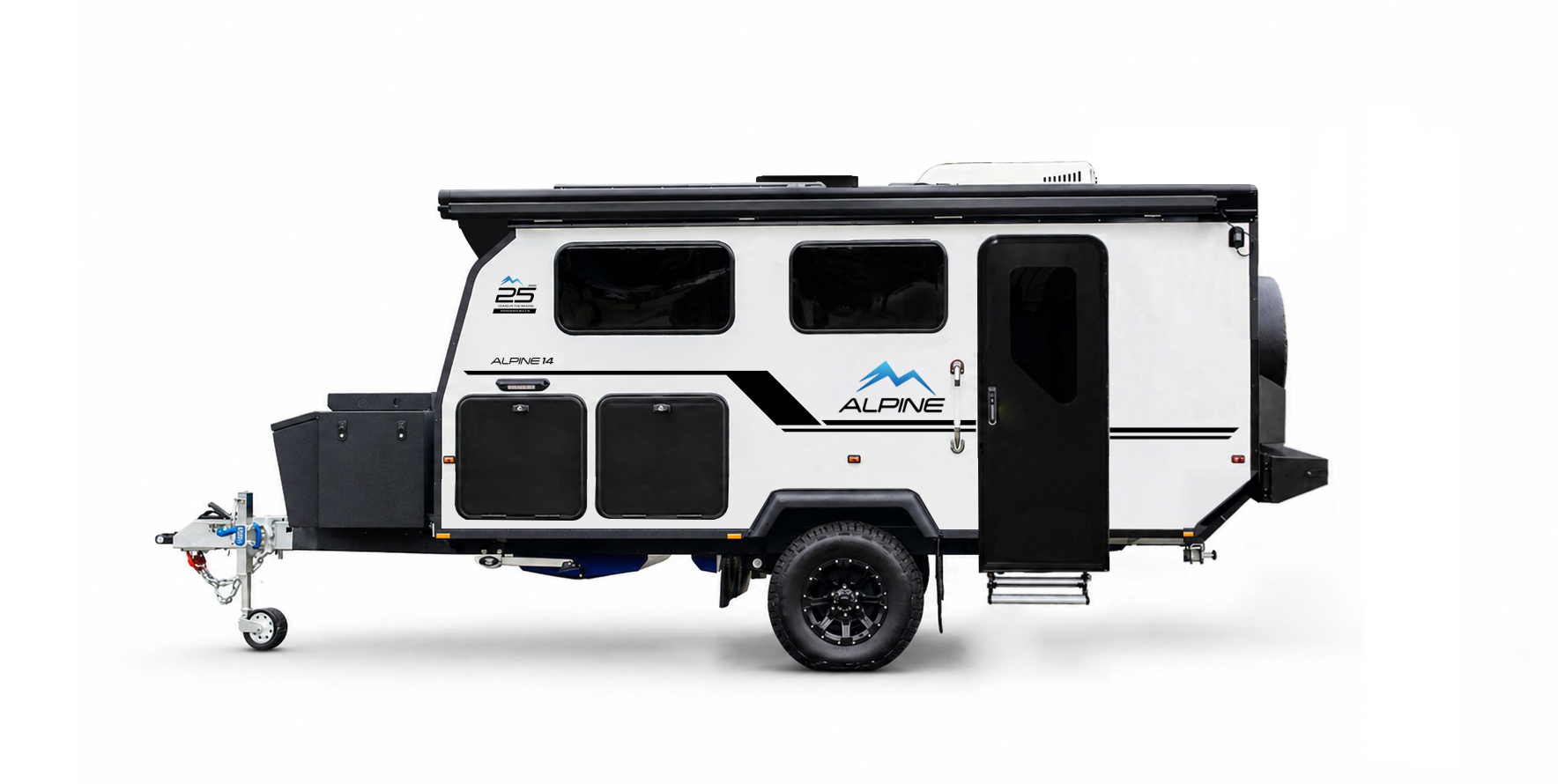

ALPINE-14

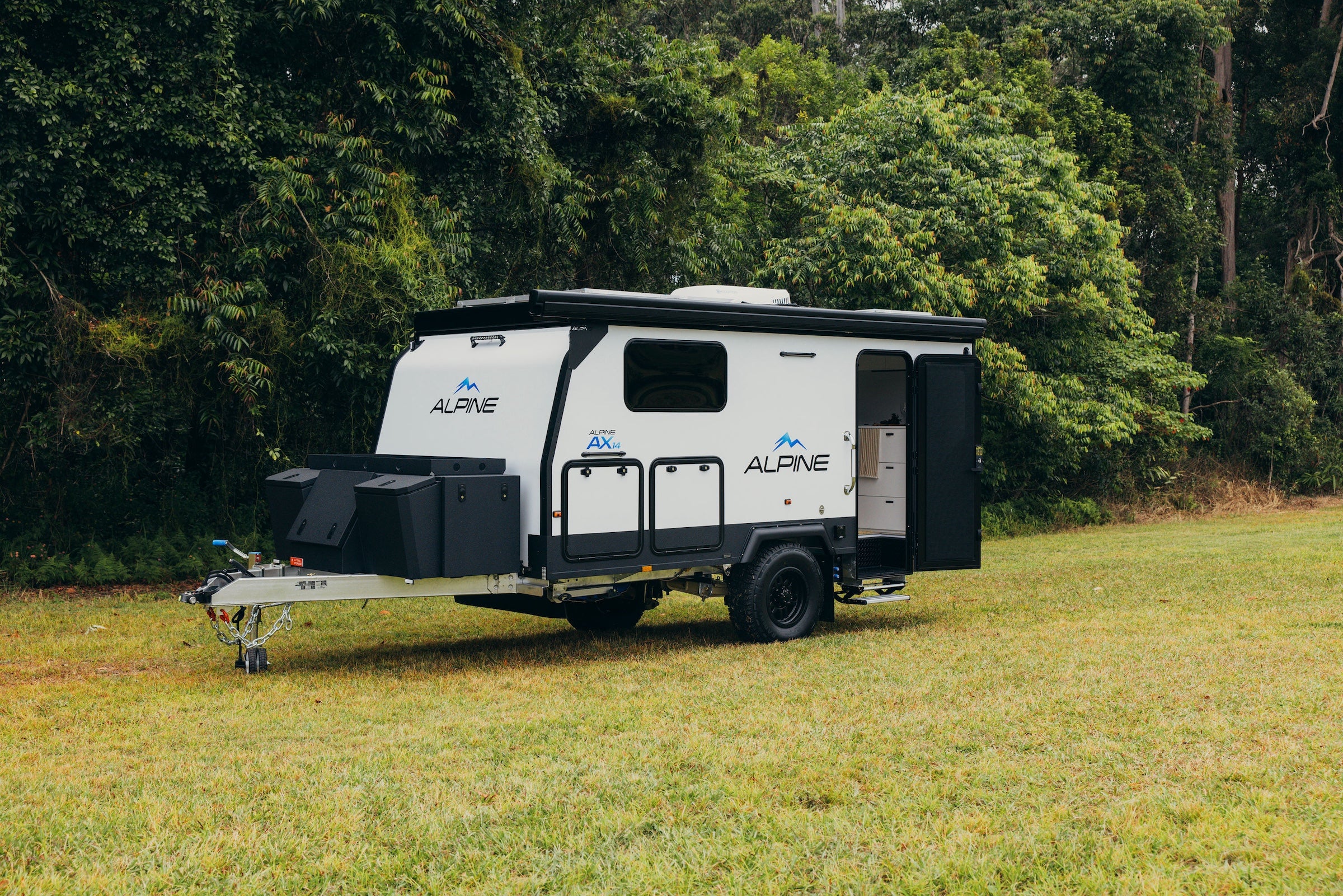

Compact, capable and easy to tow — the ALPINE-14 is built for travellers who want practical off-grid touring in a smaller, more manageable hybrid.
2.56mStorage height
2.16mTravel width
6.65mOverall length
Single axleHybrid platform
01 / 02

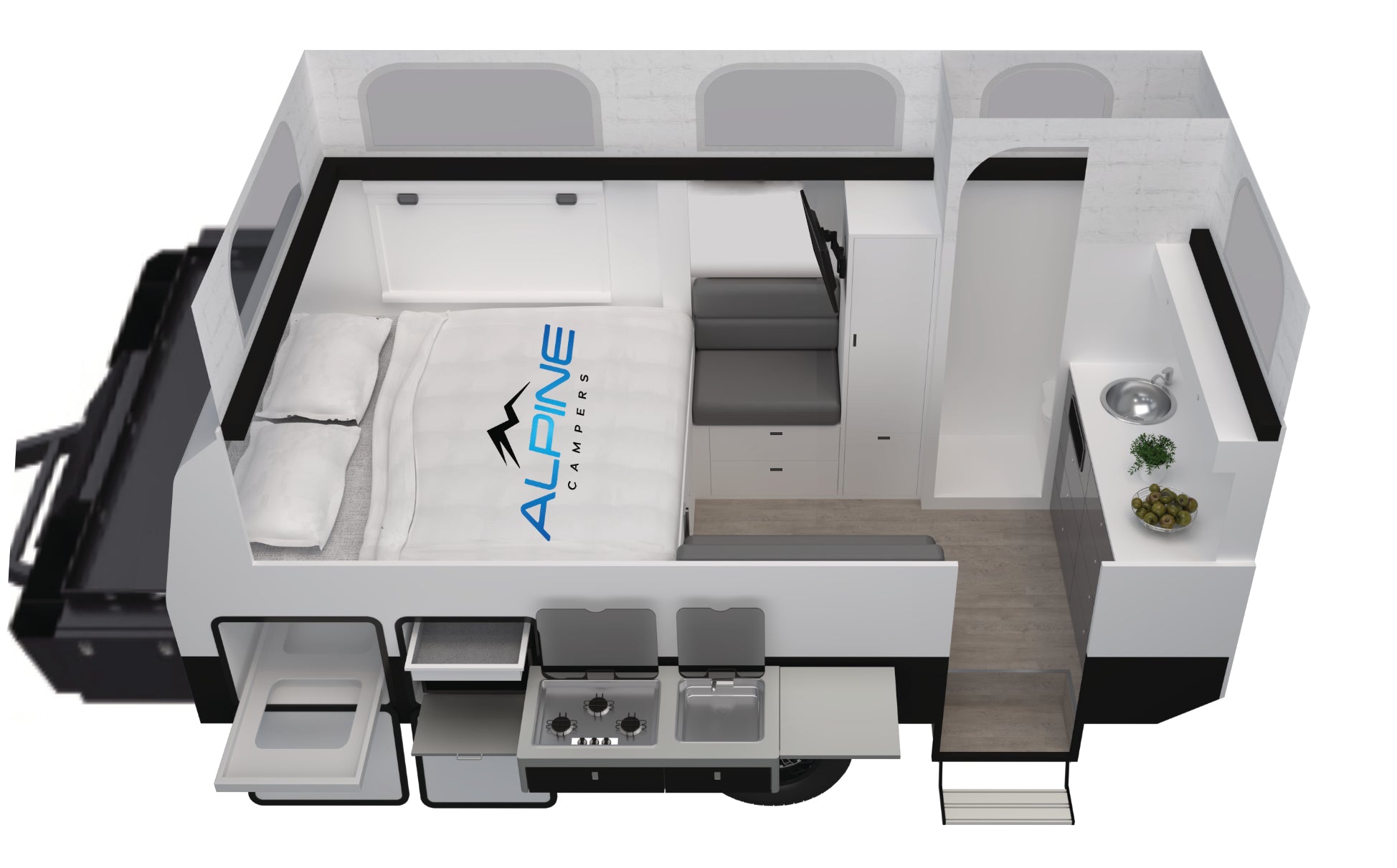

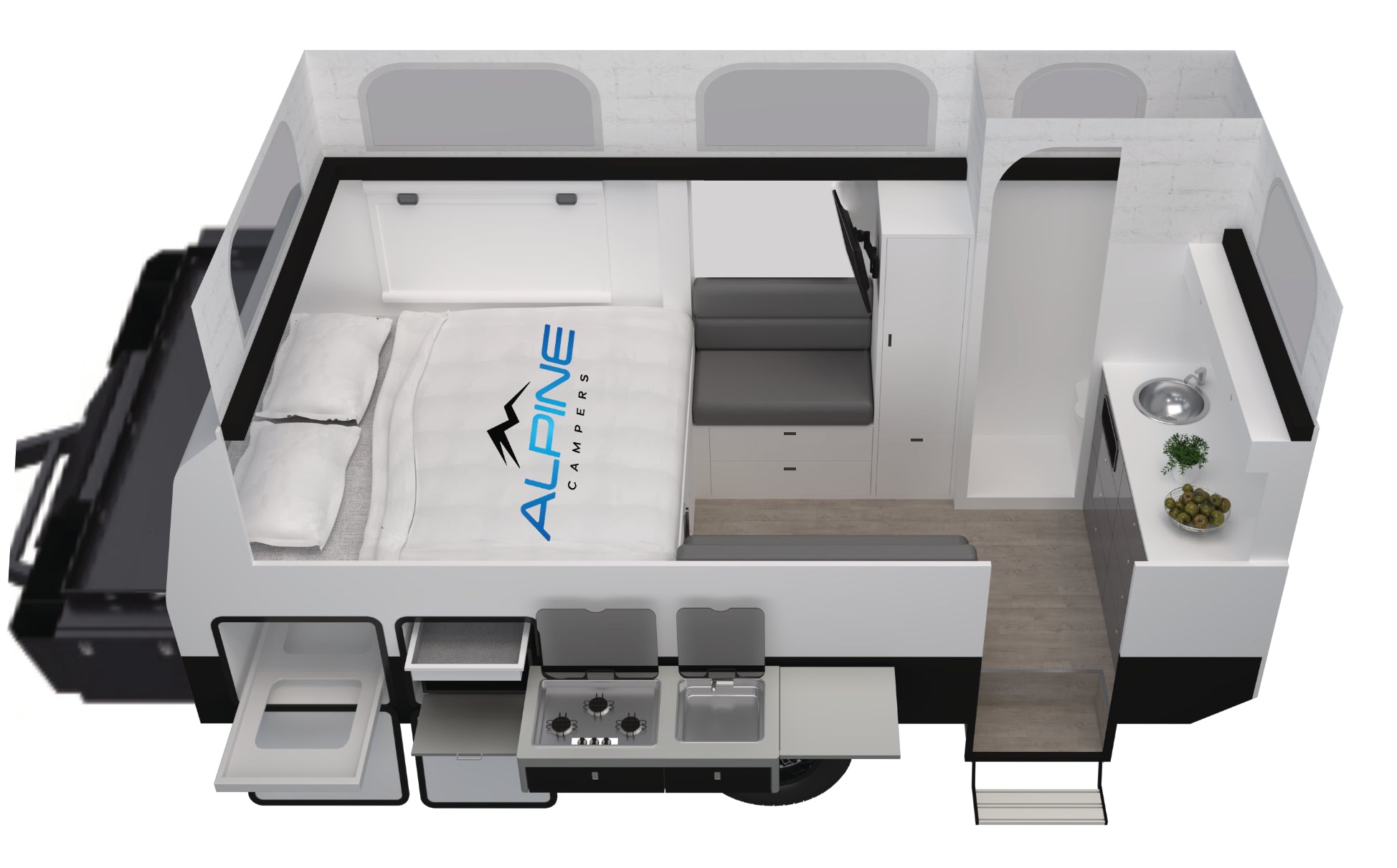

Verified ALPINE-14 and 15 floorplans have not been supplied yet. Use Interior choices to explore the bed and lounge options. A floorplan can be added in the image editor.
Make room for your way of travelling. Compare the layout illustrations below, then finalise your choices in the Quote Builder.
Across-aisle lounge/dining on both models. ALPINE-15 adds 300mm of seating length.
UpholsteryGrey · Mocha · Black
Internal fridgeOptional internal fridge — confirm your chosen setup
Rear carrier1 spare + 2 jerry holders, or 2 spare wheels
Images may show optional equipment. The supplied gallery shows ALPINE-14. ALPINE-15 uses the same internal layout with 300mm longer lounge/dining seating. Each model has its own walkthrough. Layout illustrations are indicative. Final configuration and pricing are available in the Quote Builder.
OPEN UP YOUR EVERYDAY
Life happens
out here.
The signature swing kitchen. Dual induction cooking. A proper pantry and hot/cold sink. An electric awning overhead.
Explore the outdoor inclusions ↗NOTHING LEFT TO GUESS
The complete
specification.
Everything included, laid out in full. Collapse any category when you’re ready to move on.
Construction Collapse
- Advanced PVC composite body construction
- Structural PVC composite floor system
- Insulated lightweight panel construction
- Hot-dipped galvanised chassis (150 x 50mm x 4mm)
- Q345 structural steel
- Designed for Australian touring conditions
Suspension, Wheels & Towing Collapse
- Single axle configuration

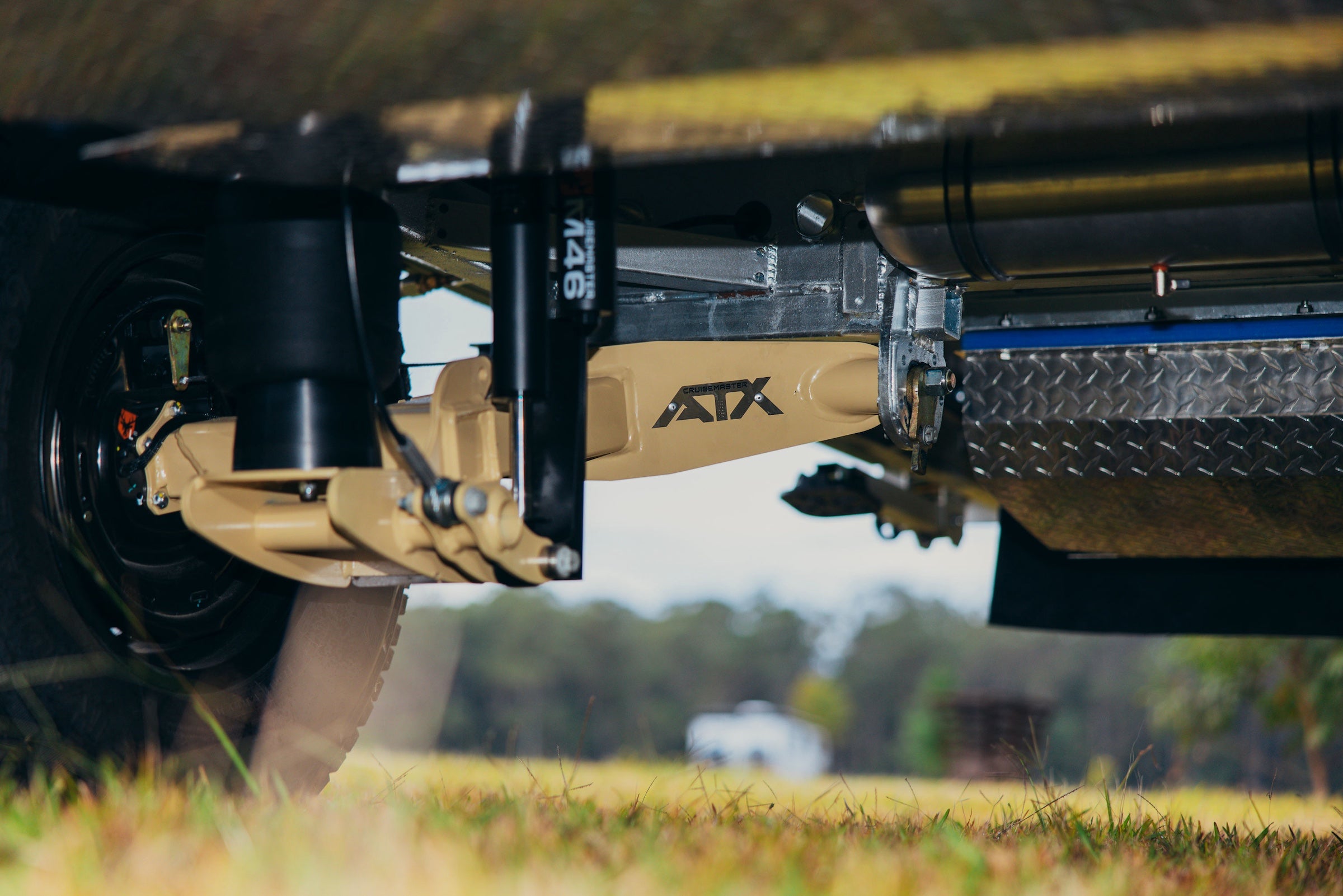

- Cruisemaster ATX airbag suspension
- Cruisemaster hydraulic disk brakes
- 16" 6-stud off-road alloys with 265/75/16 all-terrain tyres
- DO35 off-road coupling hitch
- 750kg ARK jockey wheel and stabiliser legs
- Wireless reverse camera and in-car monitor
- Under-body rubber stone protection

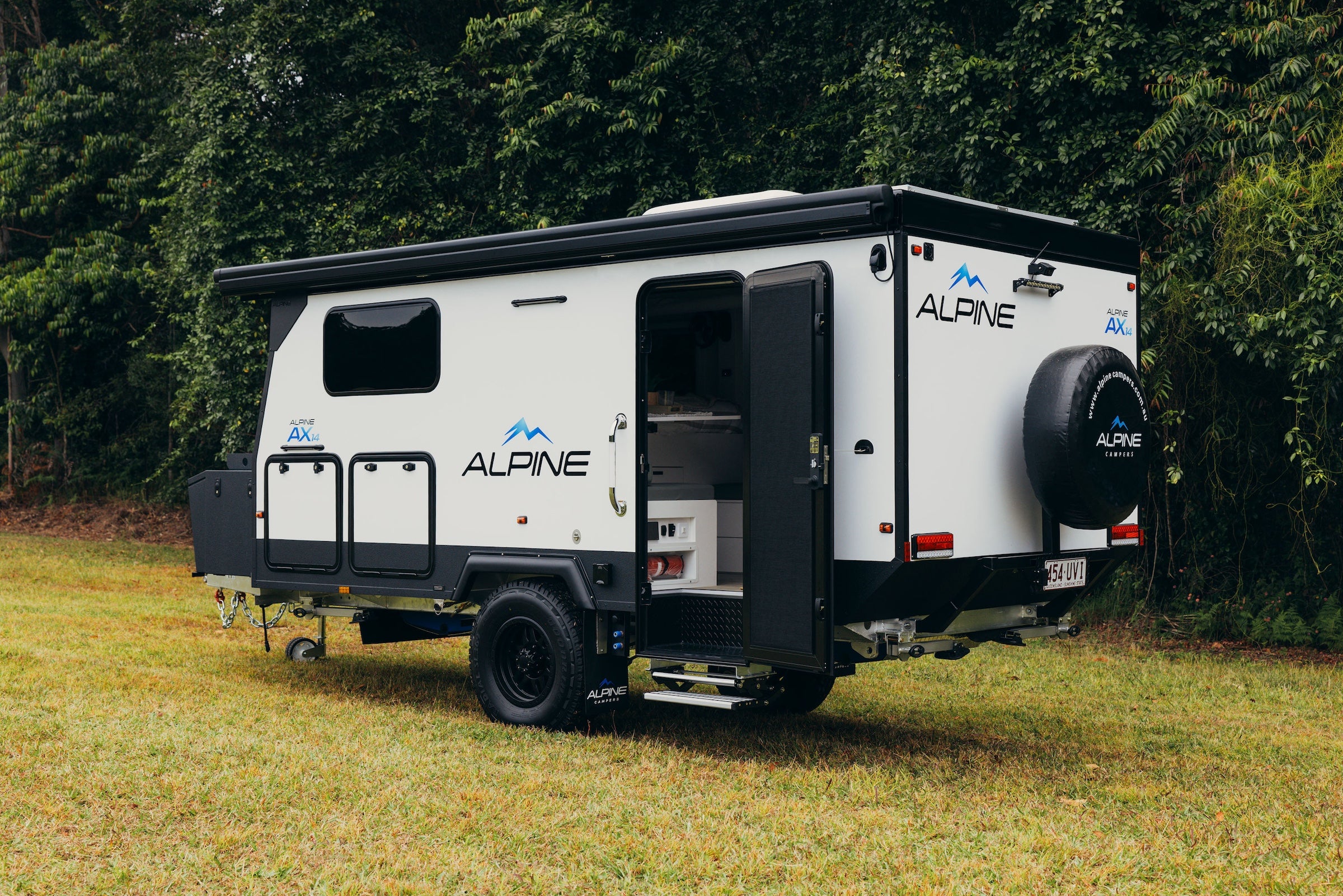

- Rear spare wheel carrier with integrated pole carrier — choose 1 spare wheel with two jerry holders, or 2 spare wheels
Internal Living Collapse

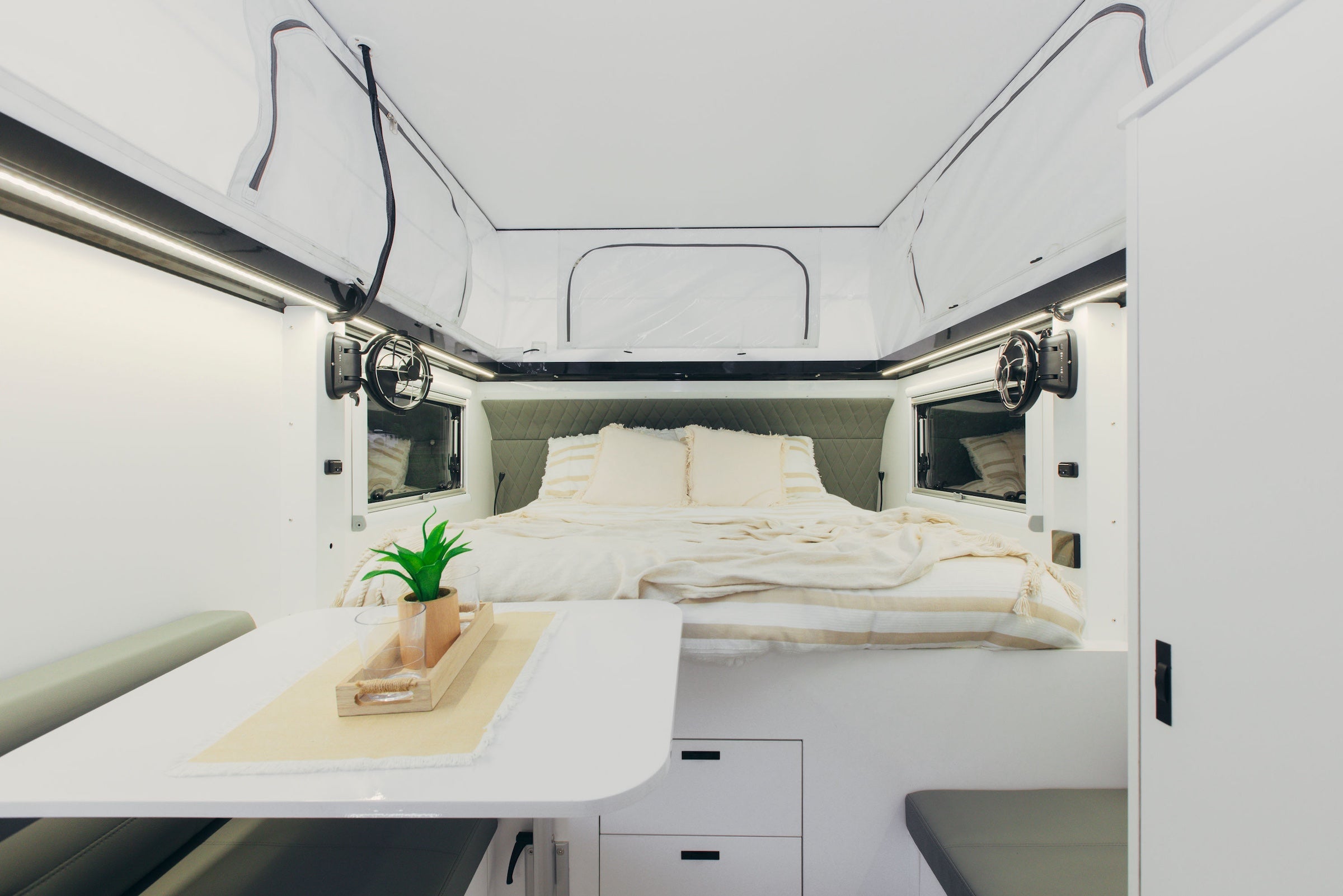

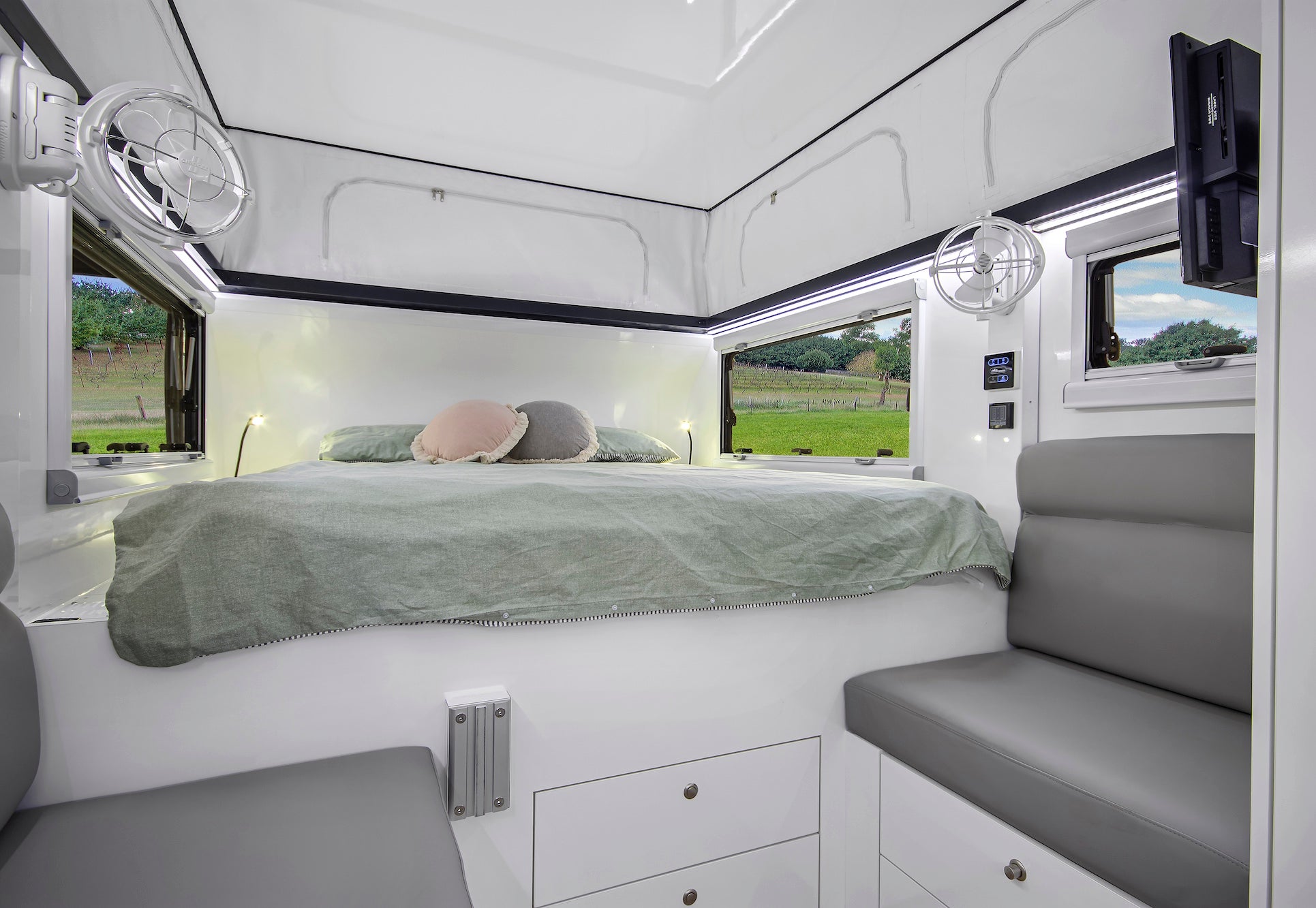

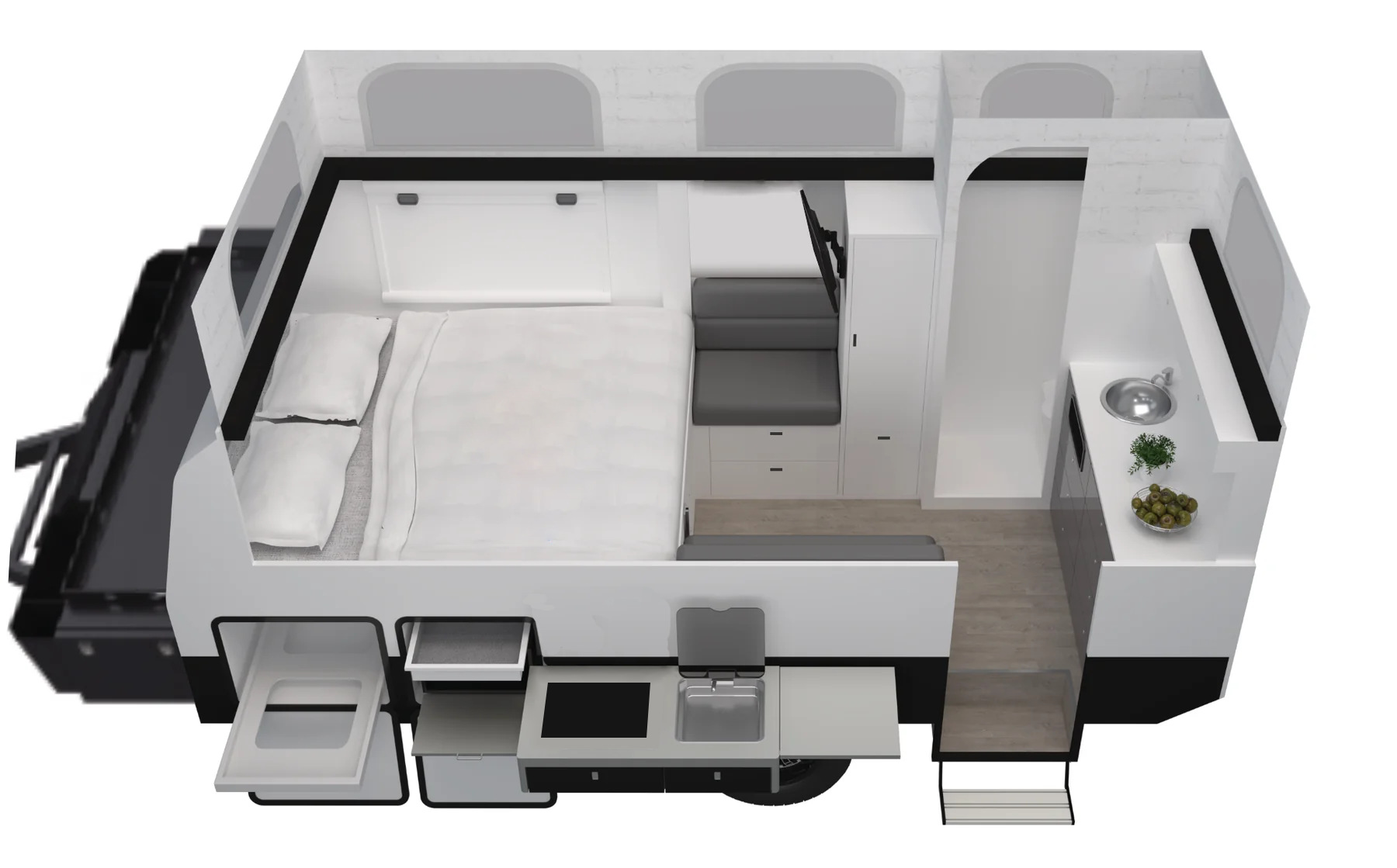

- Choose a full queen bed or single beds with small aisle
- Bedhead lighting, wireless device charging nooks and 12V outlets
- Across-aisle lounge/dining layout perfect for couples or solo travellers
- Grey, Mocha or Black upholstery selection

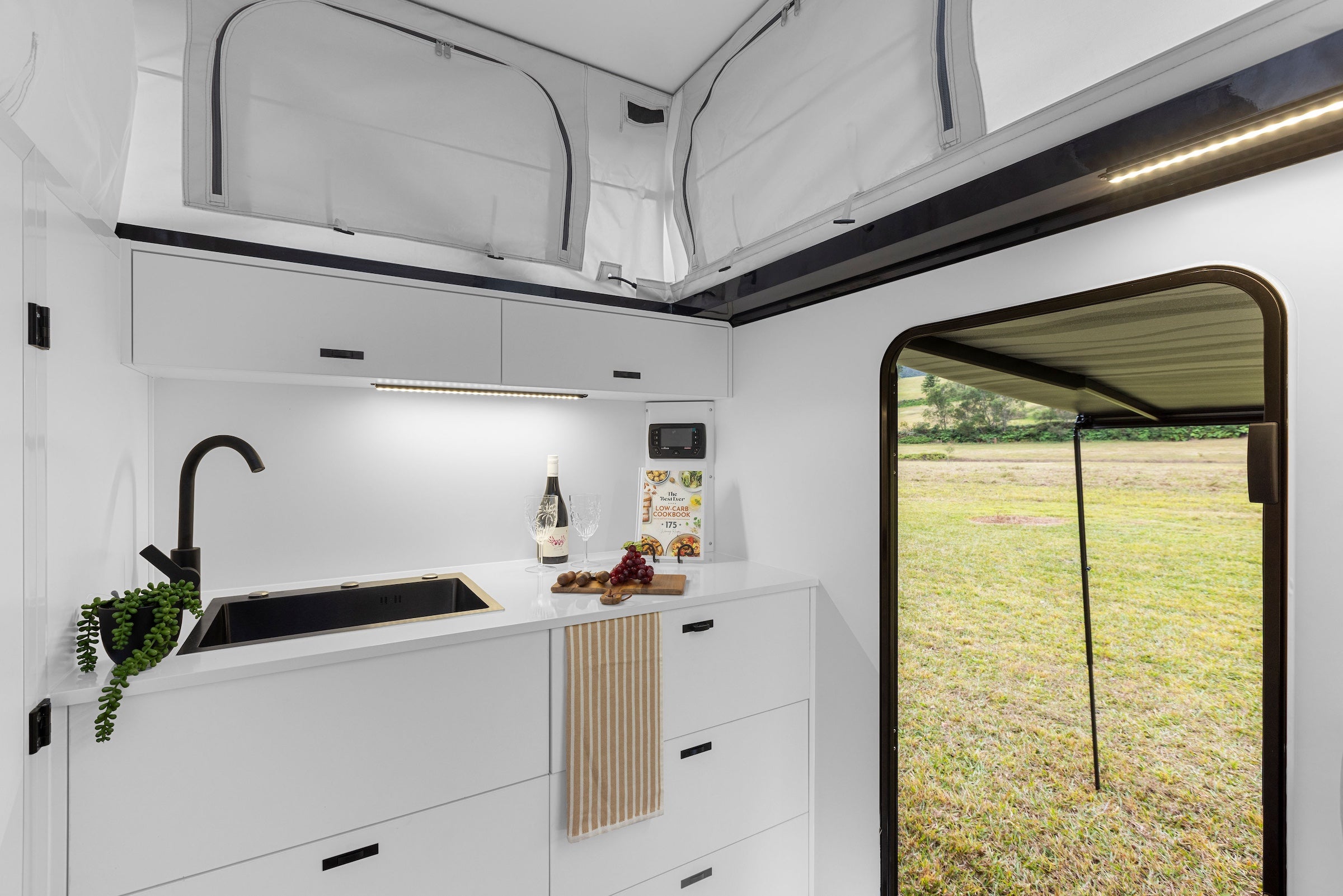

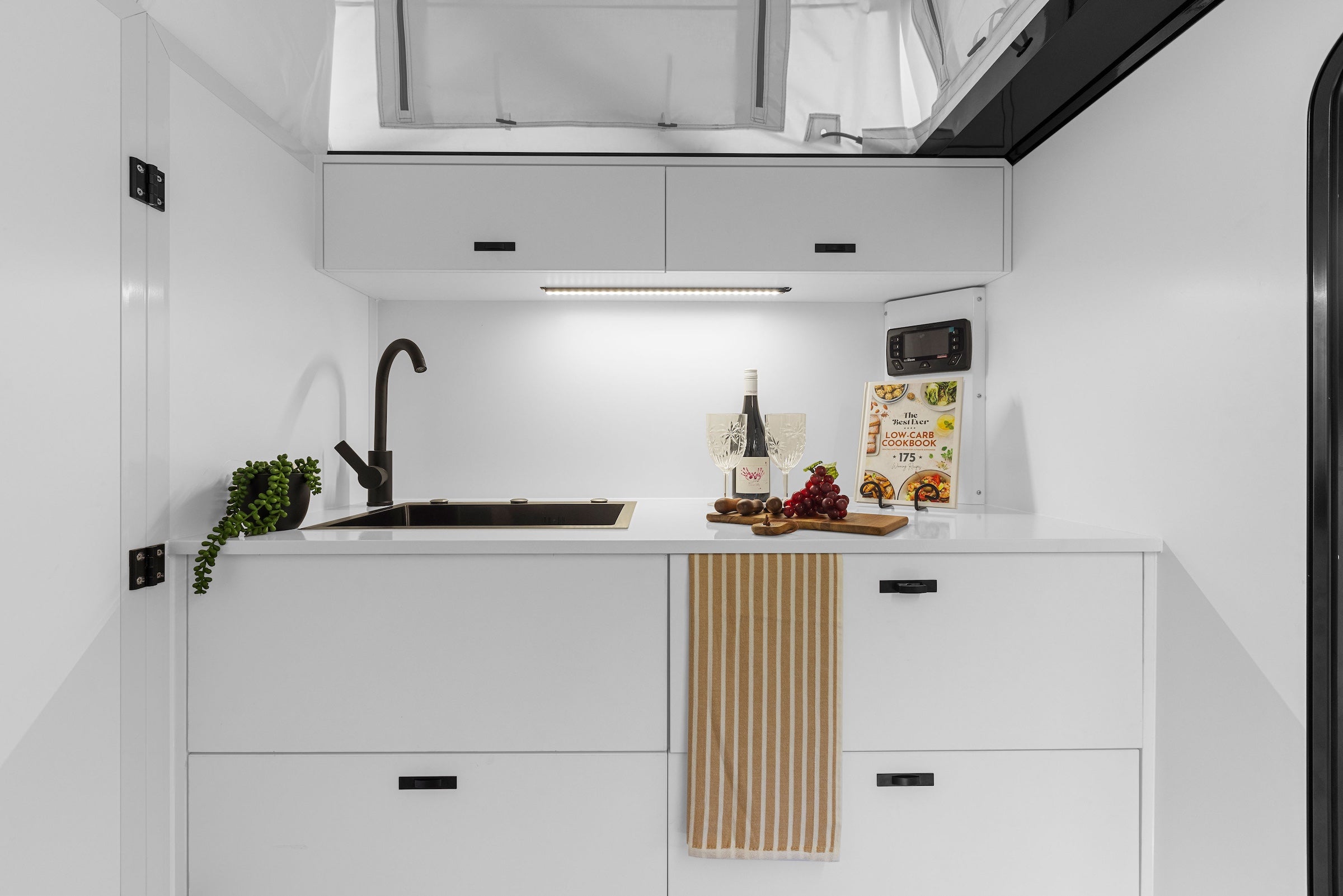

- Internal kitchenette with sink
- Hot and cold water

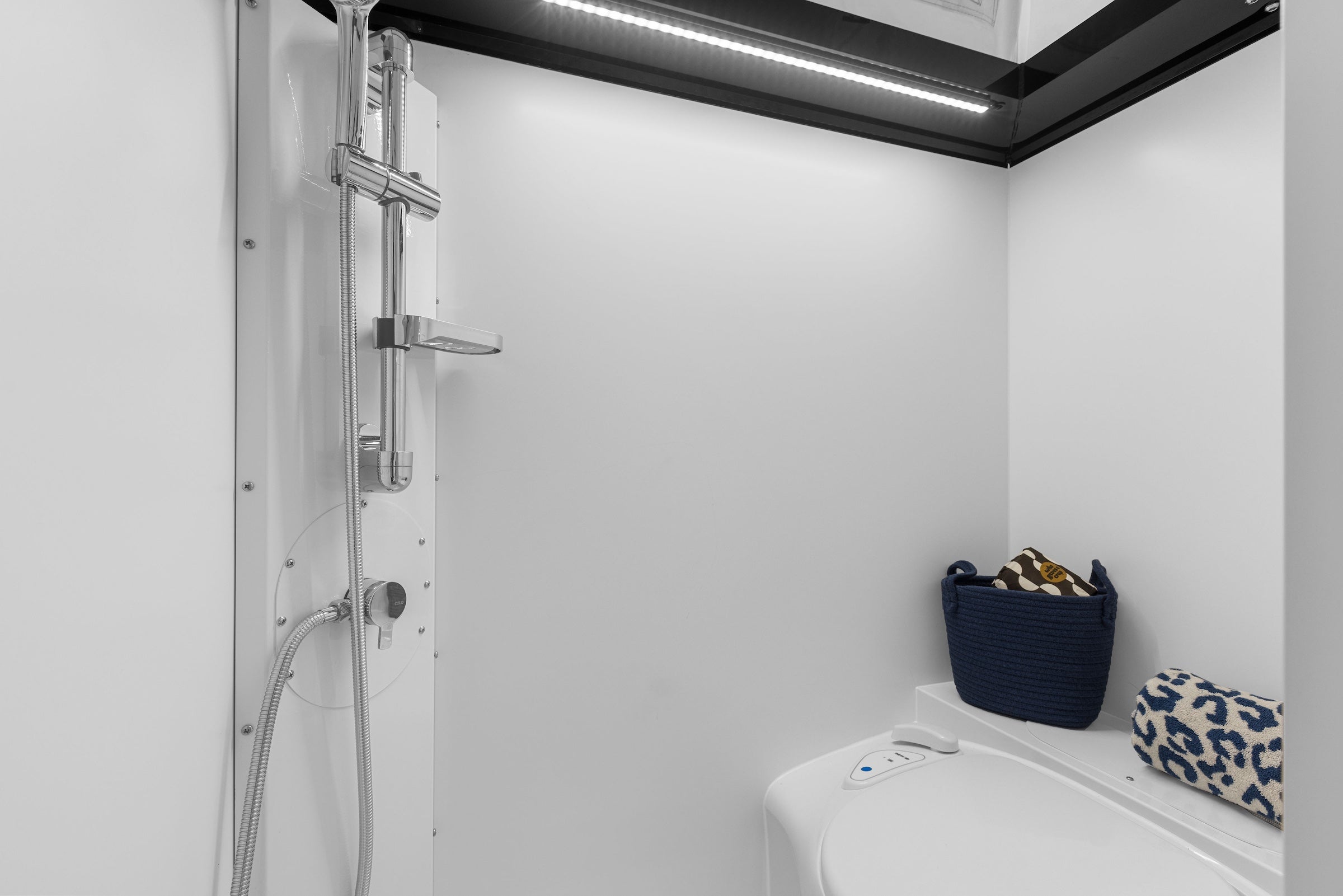

- Combo ensuite with shower and waterless toilet
- Waterless sealing toilet system - odourless, hygienic (3J-WPT)
- Roof-mounted air conditioning
- Diesel hydronic air heater and hot water system
- Cabin pressure DRS system for dust reduction
- Dimmable LED lighting
- Midge screens and blackout blinds on windows and door, plus door security screen
- 12V and 240V power points throughout
- Internal fridge option available
External Living Collapse
- ALPINE's signature external kitchen setup
- Stainless steel kitchen construction
- Large pantry storage
- Cooking area with dual induction cooktop
- Hot and cold external sink
- Fridge slide with 12V power — fridge upgrade available
- BBQ slide and BBQ utensil storage

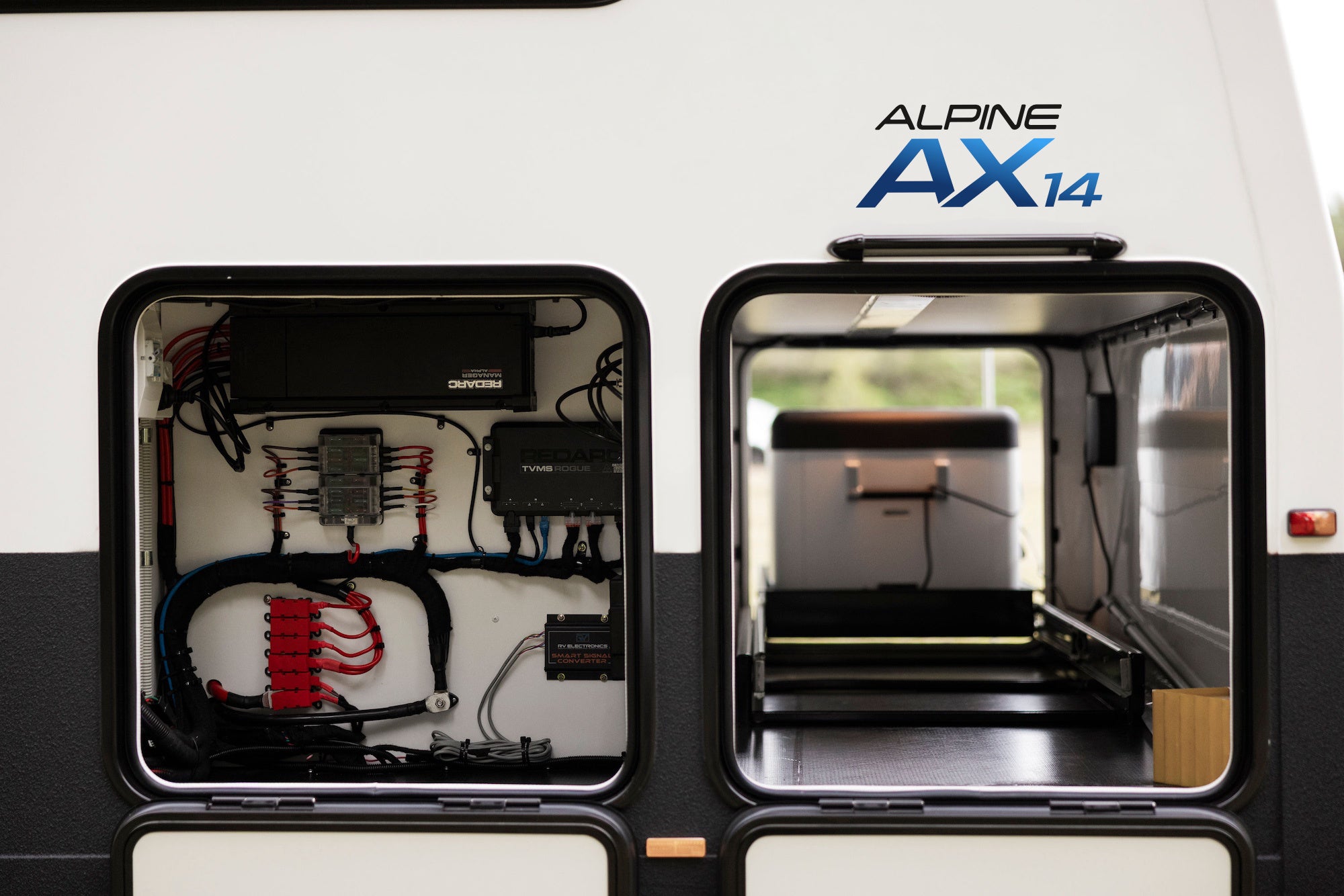

- Large external storage compartments with weather seals
- Electric awning with anti-flap kit
- External hot/cold shower
- External LED lighting with white/orange settings
- Drawbar tap
- Front storage box with BBQ slide and storage, generator slide, gas bottle storage, lockable jerry holders and firewood rack
Off-Grid Systems Collapse
- 600Ah lithium battery system
- 750W roof-mounted solar
- External solar input for portable panels
- Victron Multi-Plus II 120A / 3000W Inverter / Charger
- Garmin monitoring and switching
- 3000W Victron inverter

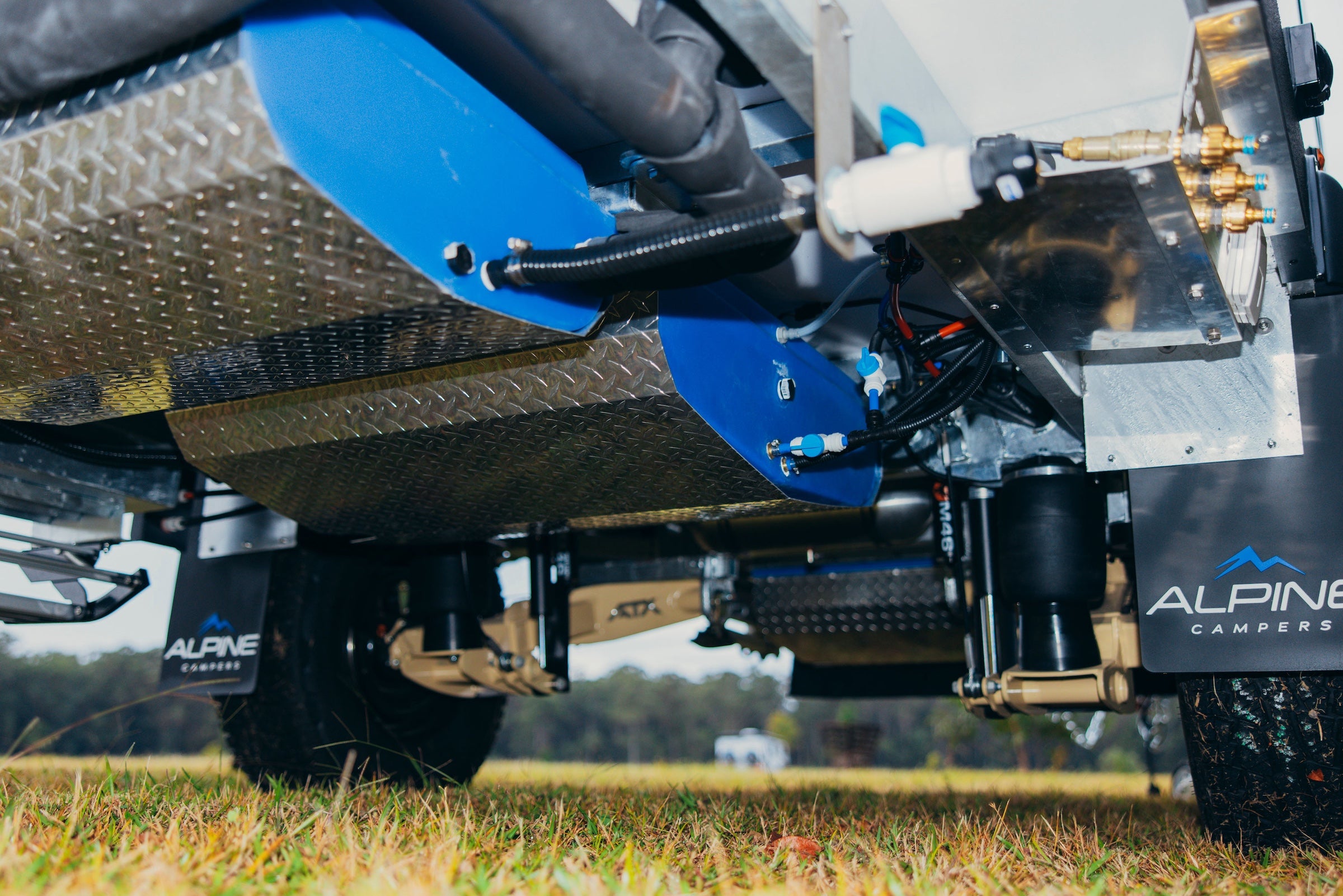

- 240L fresh water storage
- 100L grey water tank
- Mains water connection
- Heat-seal waterless toilet system (3J-WPT)
Dimensions Collapse
ALPINE-14
- External Length
- 6.65m
- Body Length
- 4.27m
- Body Width
- 2.0m
- Travel Width
- 2.16m (incl Awning & Guards)
- Storage Height
- 2.56m
- Tare
- 2,100kg
- ATM
- 3,000kg
- Tow Ball
- 180kg
ALPINE-15
- External Length
- 6.95m
- Body Length
- 4.57m
- Body Width
- 2.0m
- Travel Width
- 2.16m (incl Awning & Guards)
- Storage Height
- 2.56m
- Tare
- 2,170kg
- ATM
- 3,000kg
- Tow Ball
- 190kg
Support & Ownership Collapse
- Direct-to-brand support
- Warranty support coordinated by the ALPINE team
- Australia-wide servicing pathways
- Sunshine Coast service and warranty support team
- Built on 25 years of camper and caravan industry experience
Specifications supplied by ALPINE. Dimensions and weights are indicative and vary with configuration; confirm final equipment and plated weights for your ordered vehicle. The powered external fridge slide is included; the external fridge is an upgrade.
